| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | TYF |
| إصدار الشهادات: | LM-80 Rohs |
| رقم الموديل: | TR2-1510C-1202P7 |
| الحد الأدنى لكمية: | 500 |
| الأسعار: | 0.47-0.55USD/PCS |
| إبراز: | 36V high power COB LED,12W full spectrum COB LED,low blue light COB LED chip,12W full spectrum COB LED,low blue light COB LED chip |
||
|---|---|---|---|

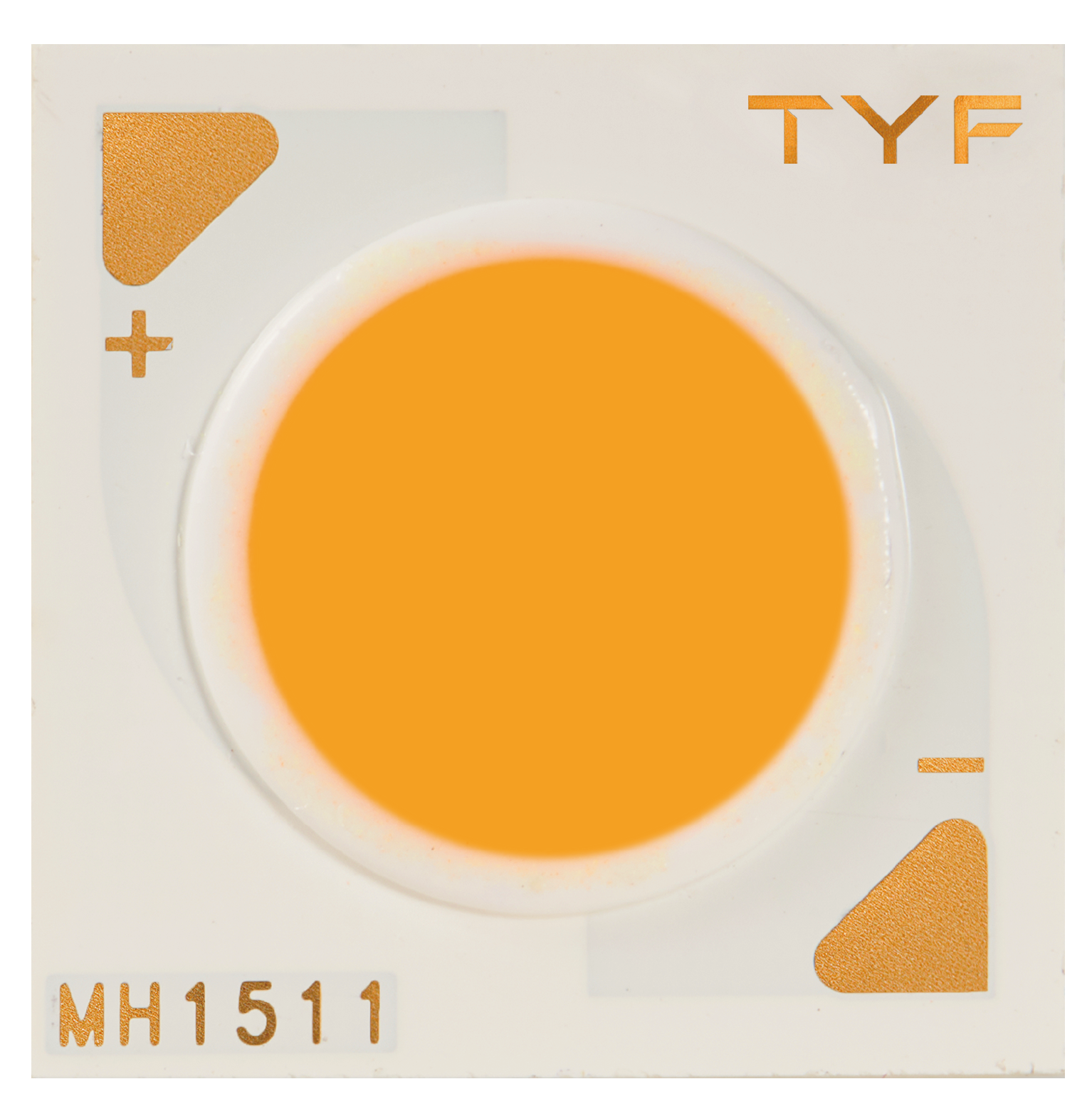

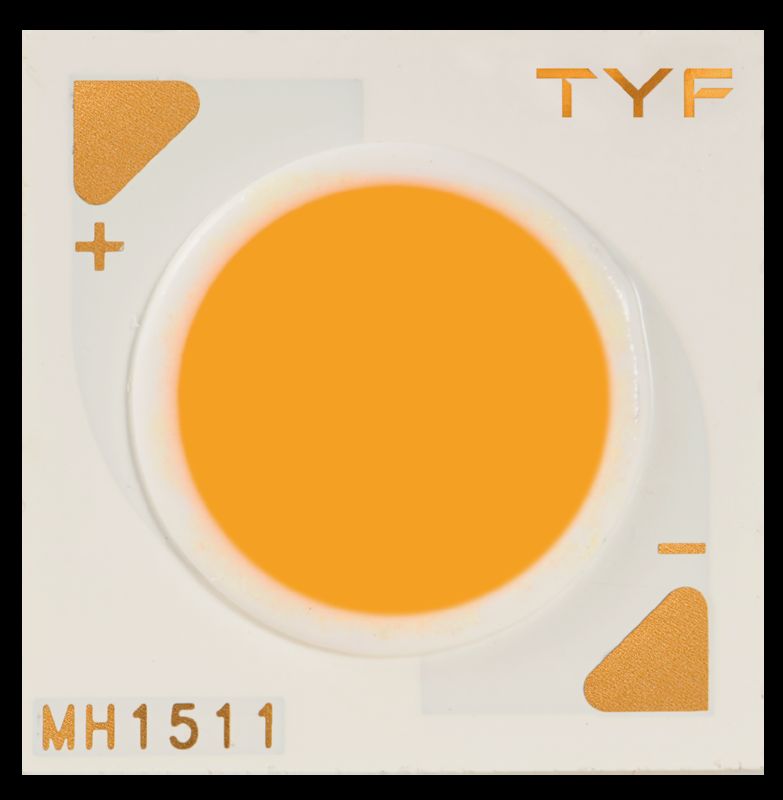

The TYF COB package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.
| Power | 10W - 15W |
| Forward Voltage | 34 - 38 V |
| Forward Current | 200 - 400 mA |
| Operating Temperature | -40 - 85 ℃ |
| Junction Temperature | 125 ℃ |
| Storage Temperature | -40 - 105 ℃ |
| ESD Sensitivity | 2000 V |
| Reverse Voltage | Reverse testing is not allowed |
| Reverse Current | 5 uA |
| Soldering Temperature | 350ºC/3-5sec ℃/S |
