| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | TYF |
| إصدار الشهادات: | LM-80 Rohs |
| رقم الموديل: | TS1-P28FA-0102BB |
| الحد الأدنى لكمية: | 10000 |
| الأسعار: | 0.013-0.018USD/PCS |
| شروط الدفع: | T/T |
| إبراز: | 3v 1w 2835 SMD LED chip,high power 2835 LED 3000K,CRI90 2835 LED 235lm/W,high power 2835 LED 3000K,CRI90 2835 LED 235lm/W |
||
|---|---|---|---|

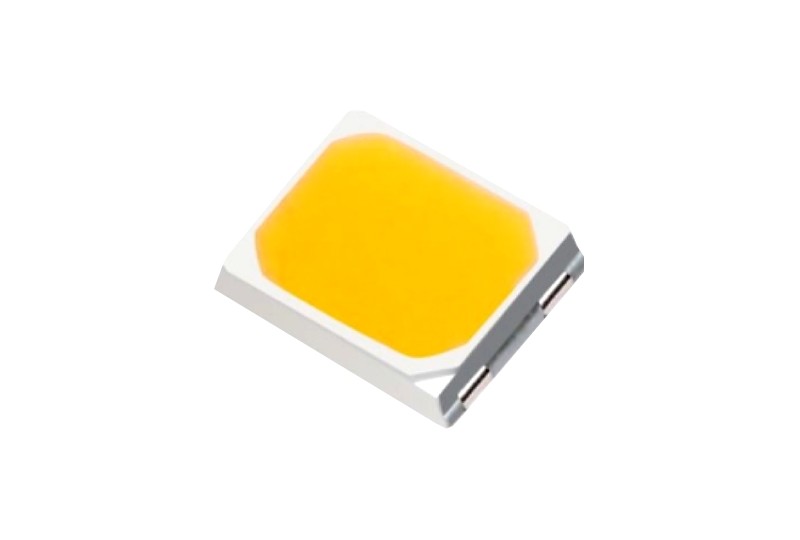

The TYF 2835 package has high efficacy, high Ra, low power consumption, wide viewing angle and a compact form factor. These features make the package an ideal LED for lighting applications.
| Parameter | Value |
|---|---|
| Limiting Power | 1.0 W |
| Forward Current | IF ≦300 mA |
| Operating Temperature | -40℃ To +85℃ |
| Junction Temperature | Tj 125 ℃ |
| Thermal Resistance | 21 ℃/W |
| Storage Temperature | -40℃ To +105℃ |
| ESD Sensitivity | 2,000V HBM V |
| Reverse Voltage | Reverse testing is not allowed |
| Reverse Current | VR=5V 1uA |
| Soldering Temperature | 260℃/3-5sec. |
| Moisture Sensitivity Rating | MSL3 ℃/RH/H |
